Diamond grinding underway
The sub floor covered in adhesive
The sub-floor with adhesive and latex

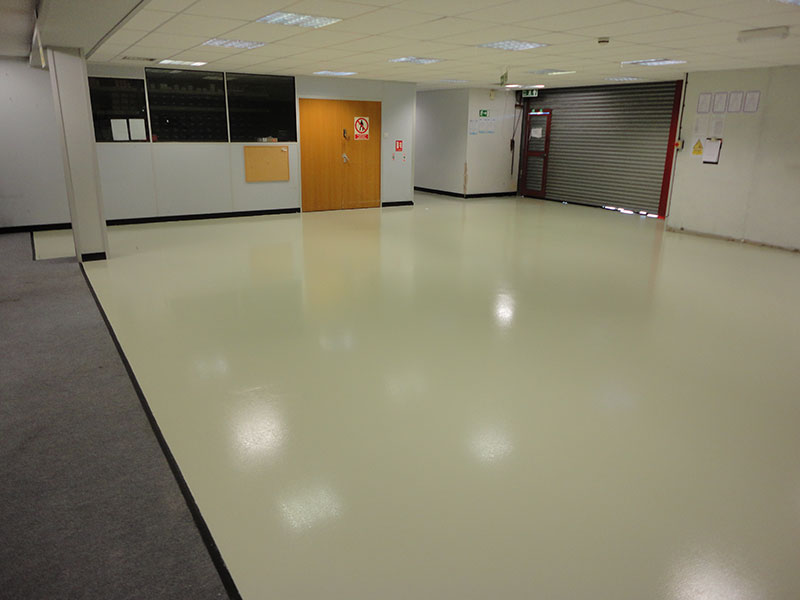

The finished floor with fine slip resistant finish
The finished floor and threshold detail
Facts & Figures
- Completion date: August 2017
- Location: Slinfold, Sussex
- Size of floor: 80 sq m
Industrial Flooring Project Scope.
Mecmesin required a floor suitable for Forklift and pallet truck movement.
The refurbishment had to take place over an extended weekend of a Friday, Saturday and Sunday.
Elgood Industrial Flooring’s Britdura 750 High-build solvent free Epoxy Floor Coating.
The floor has a built-in fine slip resistant texture which is not sprinkled by hand and as such does not inhibit sweeping / house-keeping.
The carpet was cut to a straight line and a black Gradus T450 reducing strip was used to make the transition between the resin floor and the carpet.
The refurbishment of the floor had to be completed in four phases to minimise disruption to operations. The concrete was prepared using vacuum contained diamond grinding.
Repairs were made using our solvent free Epoxy resin mortar. Our Britdura 750 solvent free High-build Epoxy Floor coating was installed in the colour Charcoal. Pallet bays were highlighted with lines and numerals. Areas of specific use were installed in a contrasting colour.
Preparation for Industrial Flooring
The carpet was stripped using a stripping machine and the adhesive and latex was removed using diamond grinding. This cleaned and exposed the concrete leaving it ready to receive our resin floor.
Industrial Flooring system.
Elgood Industrial Flooring’s Britdura 750 High-build solvent free Epoxy Floor Coating.
The floor has a built-in fine slip resistant texture which is not sprinkled by hand and as such does not inhibit sweeping / housekeeping.
The colour is Pebble Grey RAL 7032.
